About FG-Finishing 20"x25" Series 55 MERV 7 Polyester Panel Filter (w/ internal wire frame) 12/Case
Actual Size:
15x26x21
Product:
FGF.0155202512
FG-Finishing 20"x25" Series 55 MERV 7 Polyester Panel Filter (w/ internal wire frame) 12/Case
Air Filter Type:
Polyester
FPR Rating:
Quality:
Captured Particle Size:
Material:
Polyester
Capacity:
MERV Rating:
SKU:
FGF.0155202512
MPR Rating:
GTIN/UPC:
Lead Time:
Business Day

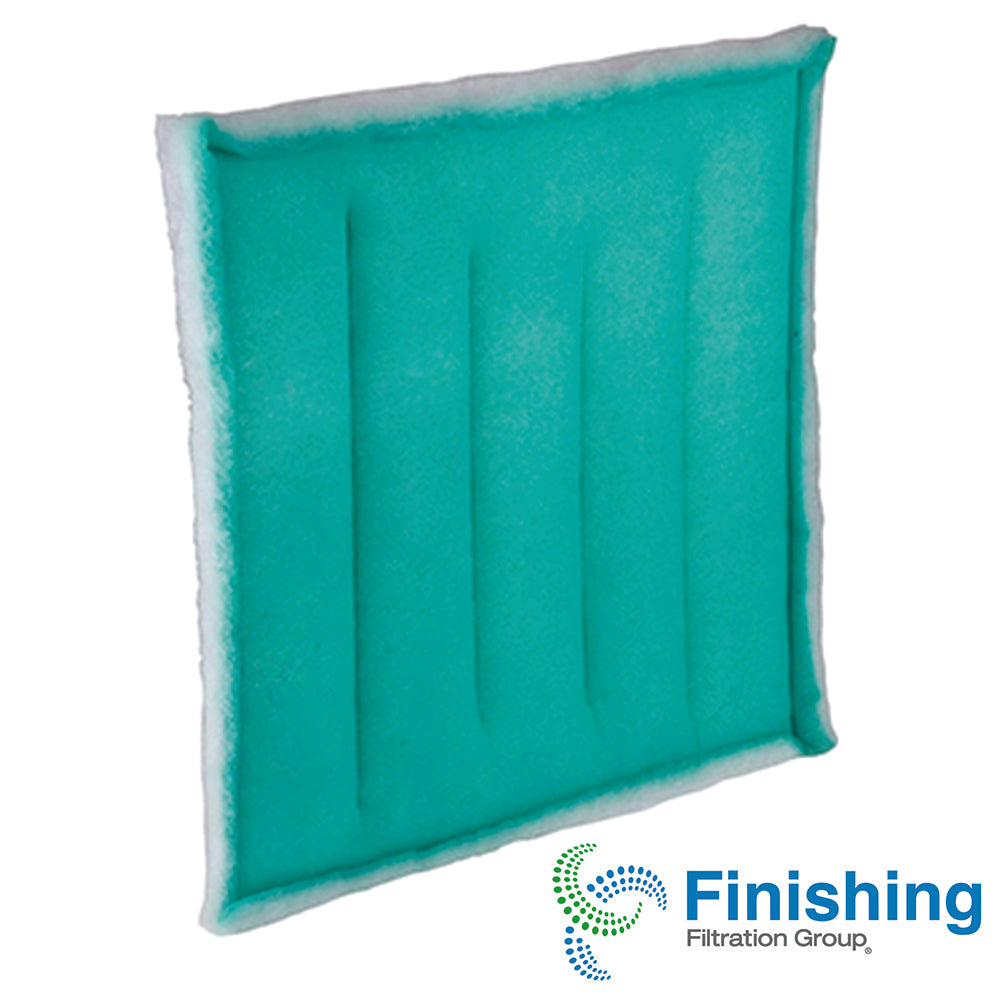

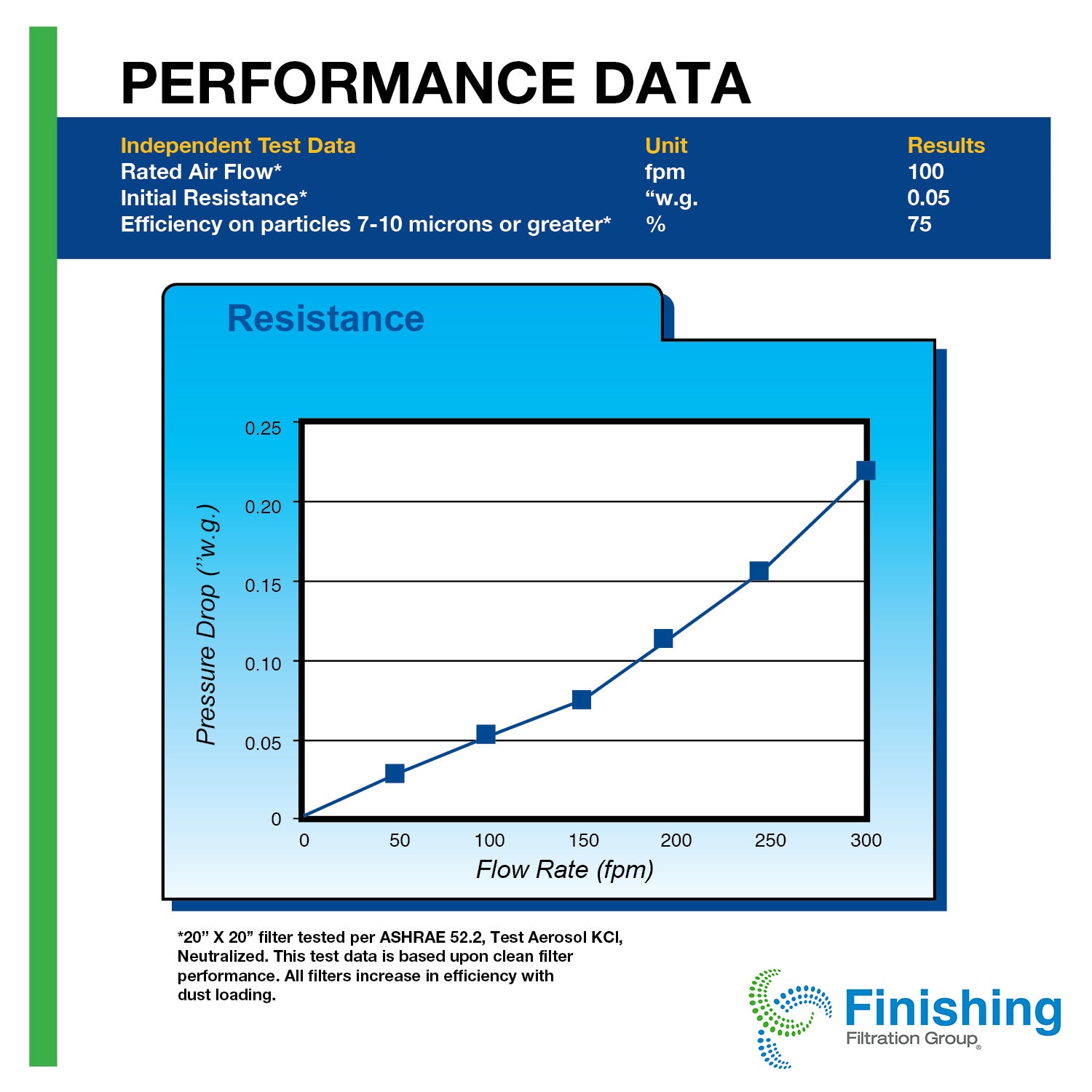

Self-gasketing, anti-microbial tackified MERV 7 polyester intake filter is humidity resistant and has a low initial resistance allowing for adequate airflow coming into the paint booth. Internal 9-gauge support frame minimizes filter media vibration and reduces the risk of particle migration downstream.

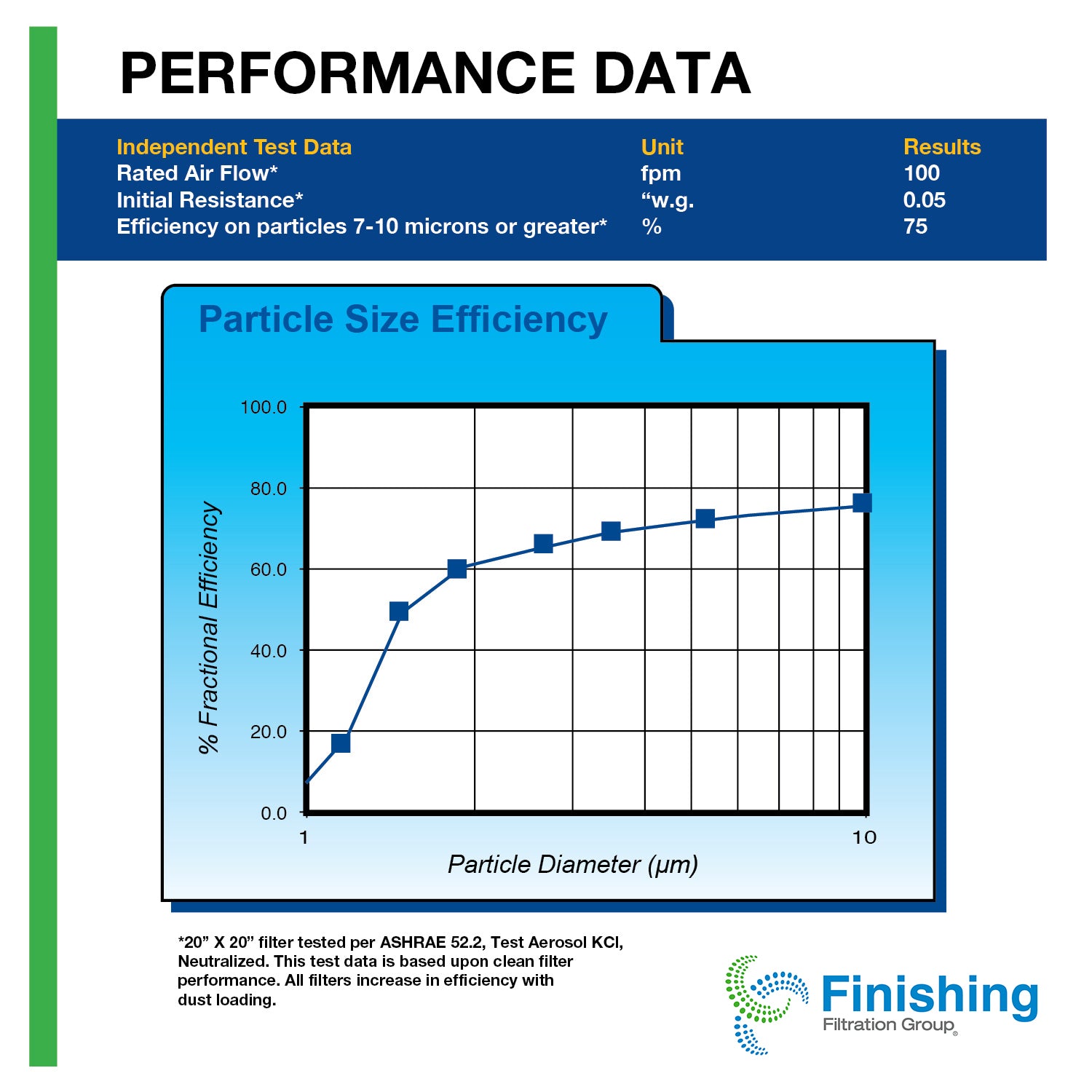

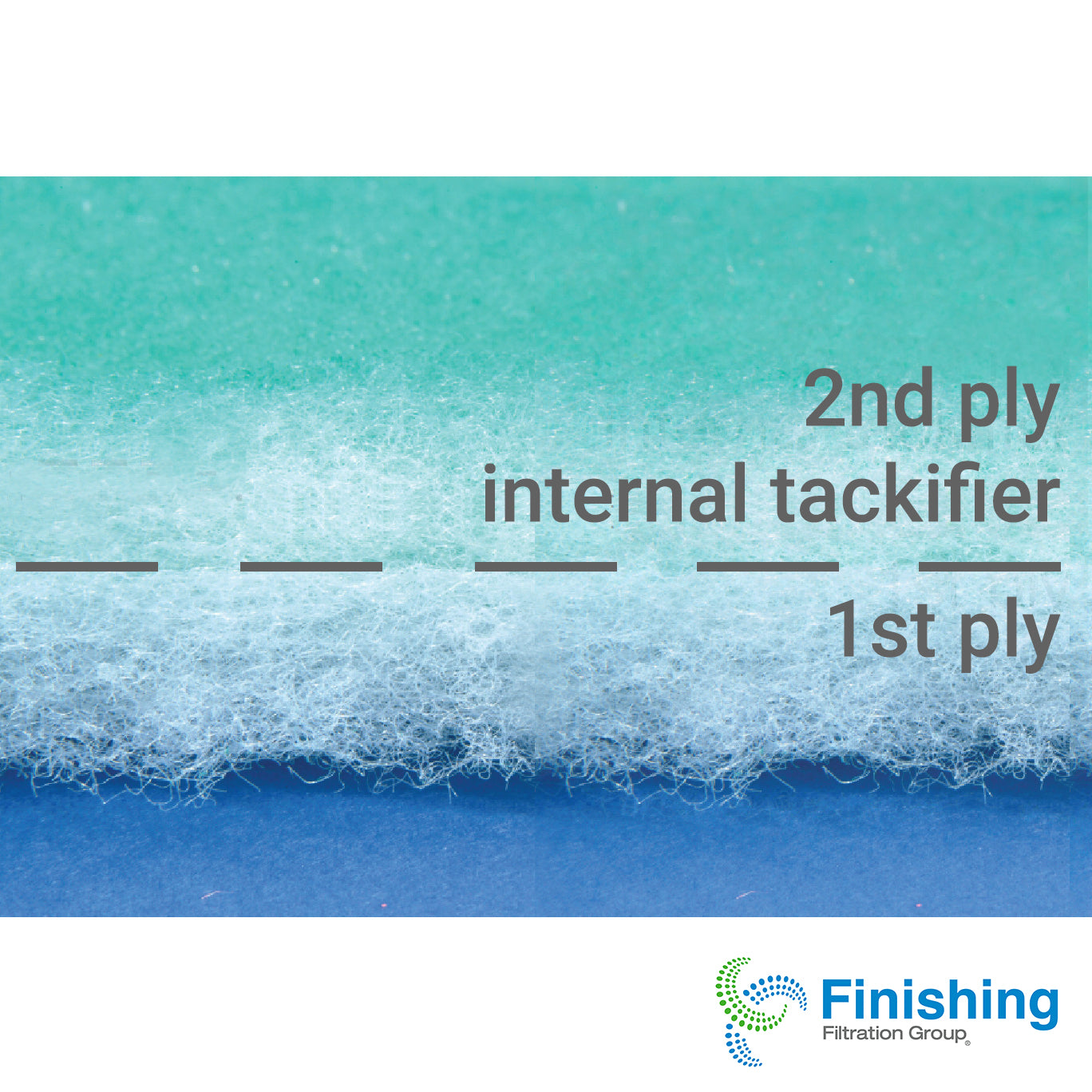

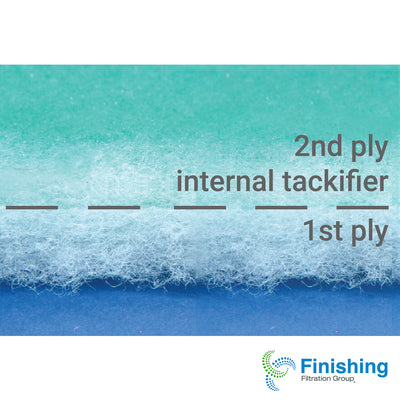

Multi-Layer Design - Series 55 AM panels consist of 2 distinct layers of polyester media combined with a non-migrating tackifier resulting in more than 75% filtration efficiency on particles 10 microns and greater. Leak-proof Seal - Self-gasketing seal around the perimeter of the filter prevents bypass of paint damaging particulate to the spray booth area.
Economical intake solution for cross draft paint booths in the Automotive Refinishing and Industrial Finishing markets.Made in the U.S.A.
FG-Finishing 20"x25" Series 55 MERV 7 Polyester Panel Filter (w/ internal wire frame) 12/Case
Multi-Layer Design - Series 55 AM panels consist of 2 distinct layers of polyester media combined with a non-migrating tackifier resulting in more than 75% filtration efficiency on particles 10 microns and greater. Leak-proof Seal - Self-gasketing seal around the perimeter of the filter prevents bypass of paint damaging particulate to the spray booth area.
Economical intake solution for cross draft paint booths in the Automotive Refinishing and Industrial Finishing markets.Made in the U.S.A.
FG-Finishing 20"x25" Series 55 MERV 7 Polyester Panel Filter (w/ internal wire frame) 12/Case
What is a MERV Rating?
MERV ratings let you know the efficiency and level of filtration that an air filter can handle under normal circumstances. The higher the MERV rating, the finer the particles are that are filtered our of the air in your home. Many air filter retailers use MERV or a similar rating to rate their air filters.
About MERV, MPR and FPR Rating
MERV Rating (Minimum Efficiency Reporting Value):
MERV Rating is the primary rating system used in the industry, both domestically and internationally. Established by the American Society of Heating, Refrigerating, and Air Conditioning Engineers, MERV rates a filter’s ability to capture and hold particles and pollutants.
MPR (Micro-Particle Performance Rating):
MPR Rating is a rating system developed by 3M. It rates the manufacturer’s Filtrete product line and their ability to capture airborne particles smaller than 1 micron.
FPR (Filter Performance Rating):
FPR Rating is a rating system developed by The Home Depot for brands sold through their stores, including Honeywell. It utilizes a color code and number scale (4 to 10) that closely resembles the MERV rating.
