Measuring Length and Width (L x W). (If your filter is not a square, the smallest measurement goes first).
Measure the thickness (Depth) of your filter from front to back.
Put Your measurements together (L x W x D).
A filter’s true dimensions.
Example: 19.75” x 19.75” x 1”
Rounded numbers used by manufacturers.
Example 20” x 20” x 1”

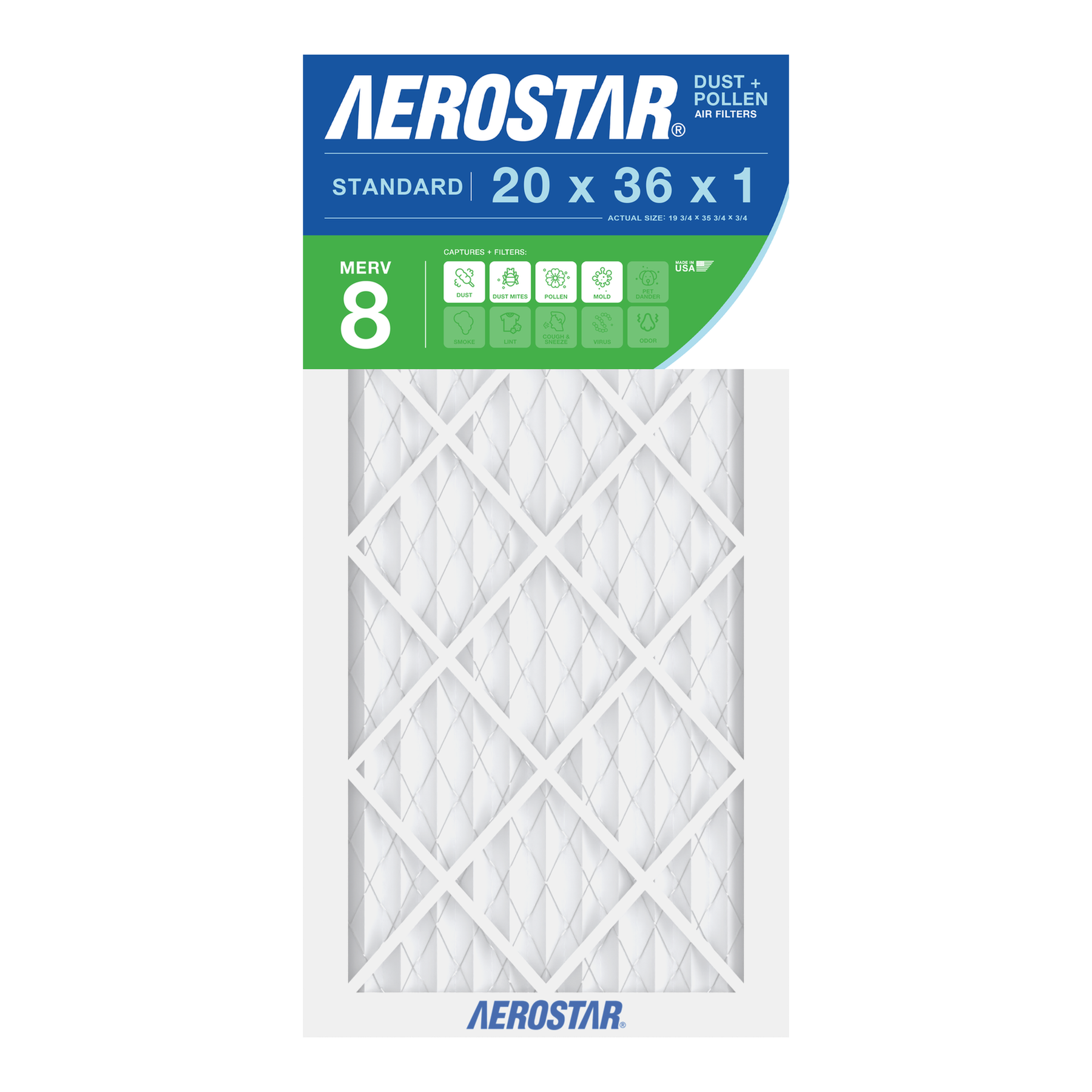

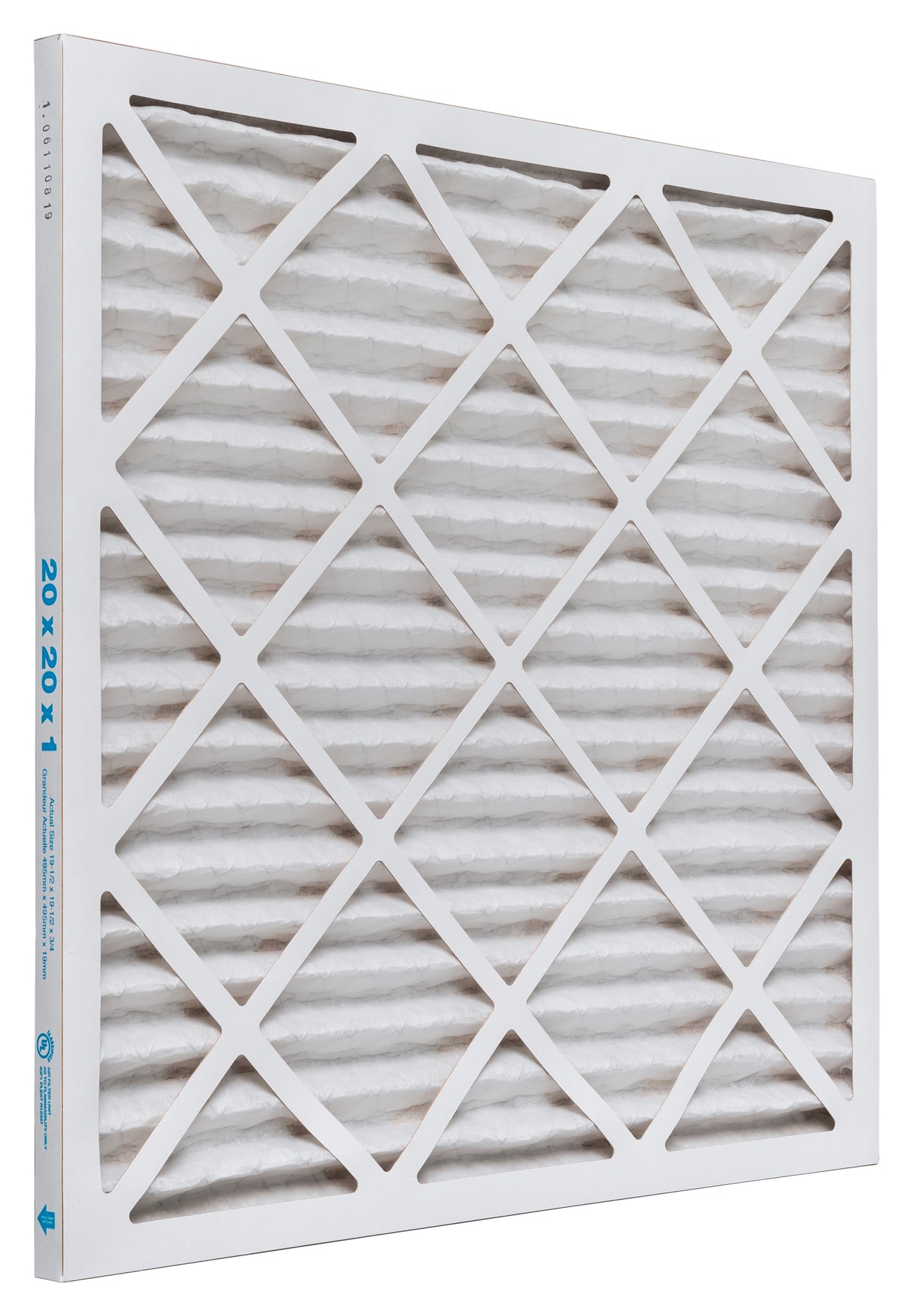

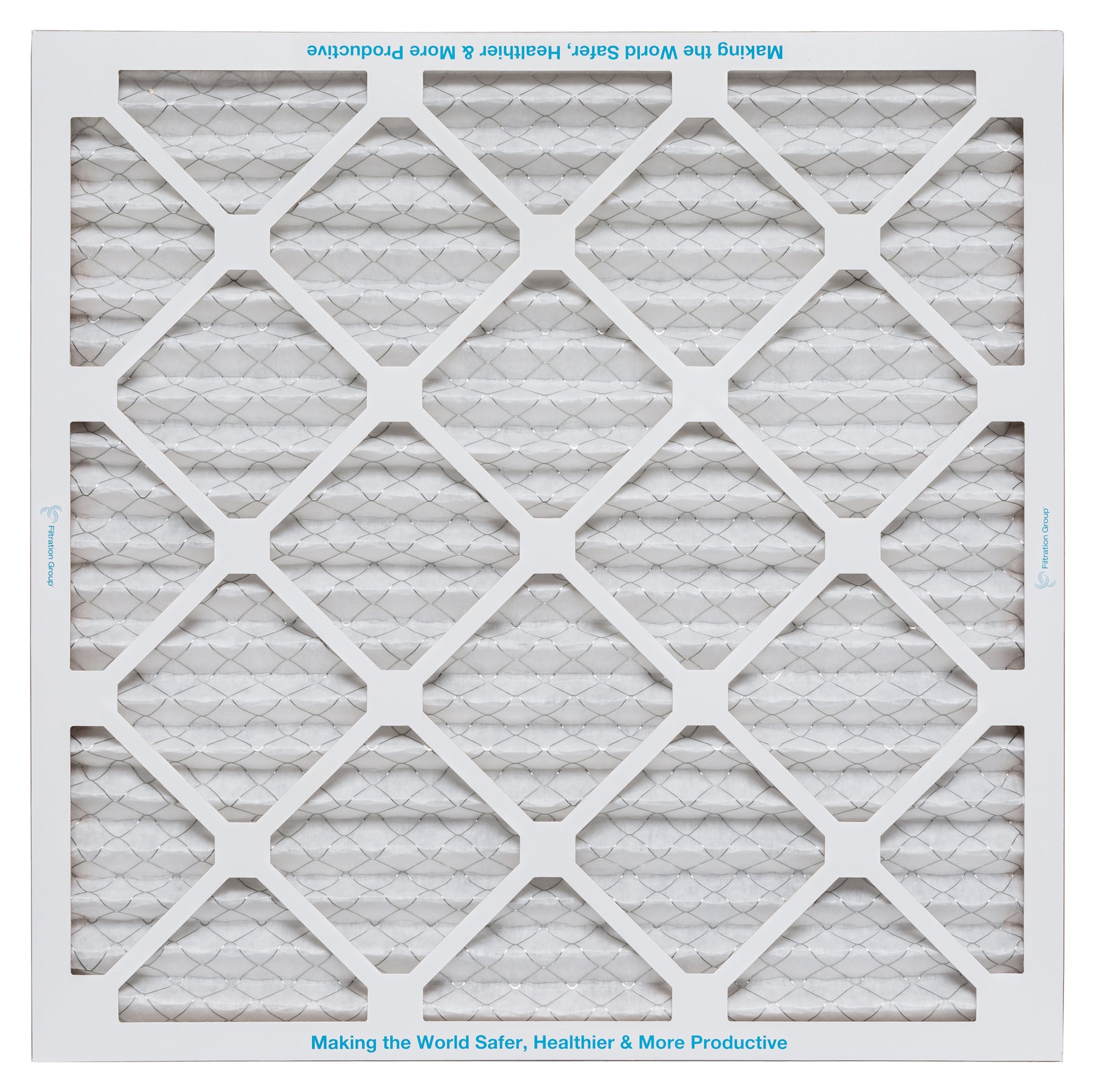

View Detailed InstructionsAt 19 3/4" x 35 3/4" x 3/4" actual, the 20x36x1 Aerostar fits a nominal 20x36x1 return. Long-rectangle returns in this size show up on larger residential air handlers and some commercial applications. Three MERV grades cover the standard residential range. MERV 8 for baseline household dust and pollen filtration - the standard choice without pets or specific allergy concerns. MERV 11 for pet households, smoke residue, and most common allergens. MERV 13 for fine particulate capture including bacteria, virus carriers, and wildfire smoke - recommended for households with respiratory health issues. Pleated synthetic electrostatic media construction. The pleats give you substantially more surface area than a flat fiberglass filter at the same nominal size, which is why this filter outlasts cheaper alternatives even at higher MERV grades. The electrostatic charge built into the fibers improves capture in the sub-micron range, where the physical weave alone reaches its filtration limits. Manufactured by Con-Air Industries in Orlando, Florida. Cardboard frame, reinforced to hold shape under blower suction - frame collapse is a common failure mode in cheaper filters and allows unfiltered air to bypass the media entirely. Plan on 60 to 90 days between changes for MERV 8 and 11, closer to 30 to 60 days for MERV 13.
Pleated MERV 8 Media
Comparable to MPR 600 and FPR 5
Designed for Superior Filtration Efficiency
Made with electrostatically charged synthetic material that draws and captures allergens between 3 - 10 microns, including lint, dust mites, mold spores, pollen, pet dander, and dust.
Improve Indoor Air Quality
Protect your family and loved ones with clean indoor air quality at home. Aerostar filters are a simple and cost effective step towards a healthier home environment, free of airborne allergens and particles that can trigger various allergy and asthma symptoms.
Improve Efficiency and Reduce Cost
An Aerostar furnace air filter helps keep your HVAC unit working efficiently by removing dirt and reducing strain on the motor. When your unit runs properly, it consumes less energy, requires less maintenance and will have a longer life. These factors will have an impact on your utility bill and maintenance costs. It is recommended that you change the filter every 60 to 90 days during normal times of year but increase frequency to 30 days during peak summer and winter months when your unit is working the hardest.
About Aerostar Furnace Air Filters
Aerostar filters are manufactured in the USA by Filtration Group, a world-leading manufacturer and supplier of filtration solutions for residential, commercial and industrial applications. The Aerostar brand is known for constantly innovating and improving their technology to help make filtration more efficient, effective and environmentally friendly every day.
About MERV, MPR and FPR Rating
The three rating systems were created by different organizations. MERV is the domestic and international Industry Standard rating system established by the American Society of Heating, Refrigerating, and Air Conditioning Engineers. The other two rating systems were created by 3M and The Home Depot, but all are rating the same filter.
MERV Rating (Minimum Efficiency Reporting Value): As you have already learned, the MERV Rating is the primary rating system used in the industry, both domestically and internationally. Established by the American Society of Heating, Refrigerating, and Air Conditioning Engineers, MERV rates a filter’s ability to capture and hold particles and pollutants.
MPR (Micro-Particle Performance Rating): MPR Rating is a rating system developed by 3M. It rates the manufacturer’s Filtrete product line and their ability to capture airborne particles smaller than 1 micron.
FPR (Filter Performance Rating): FPR Rating is a rating system developed by The Home Depot for brands sold through their stores, including Honeywell. It utilizes a color code and number scale (4 to 10) that closely resembles the MERV rating.
MERV ratings let you know the efficiency and level of filtration that an air filter can handle under normal circumstances. The higher the MERV rating, the finer the particles are that are filtered our of the air in your home. Many air filter retailers use MERV or a similar rating to rate their air filters.
MERV Rating is the primary rating system used in the industry, both domestically and internationally. Established by the American Society of Heating, Refrigerating, and Air Conditioning Engineers, MERV rates a filter’s ability to capture and hold particles and pollutants.
MPR Rating is a rating system developed by 3M. It rates the manufacturer’s Filtrete product line and their ability to capture airborne particles smaller than 1 micron.
FPR Rating is a rating system developed by The Home Depot for brands sold through their stores, including Honeywell. It utilizes a color code and number scale (4 to 10) that closely resembles the MERV rating.
Overall rating: 5.0 / 5 from 3 reviews.
Review topics: [].
"Much better quality filters than what are sold in stores. You have the option of buying higher MERV filters that remove pollutants from the air. My wife has asthma and she hasn’t had an episode since we started using MERV 13 grade filters."
"We always buy our filters from Factory Direct because they are an unusual size. We appreciate the quality and competitive price. Always easy to order and they typically ship quickly."
"I have been ordering from Factory Direct for many years. Their filters are exceptional! The company carries "odd" sizes not commonly found elsewhere. If you suffer from any type of allergy, buy your filters from Factory Direct!"
