Measuring Length and Width (L x W). (If your filter is not a square, the smallest measurement goes first).
Measure the thickness (Depth) of your filter from front to back.
Put Your measurements together (L x W x D).
A filter’s true dimensions.
Example: 19.75” x 19.75” x 1”
Rounded numbers used by manufacturers.
Example 20” x 20” x 1”

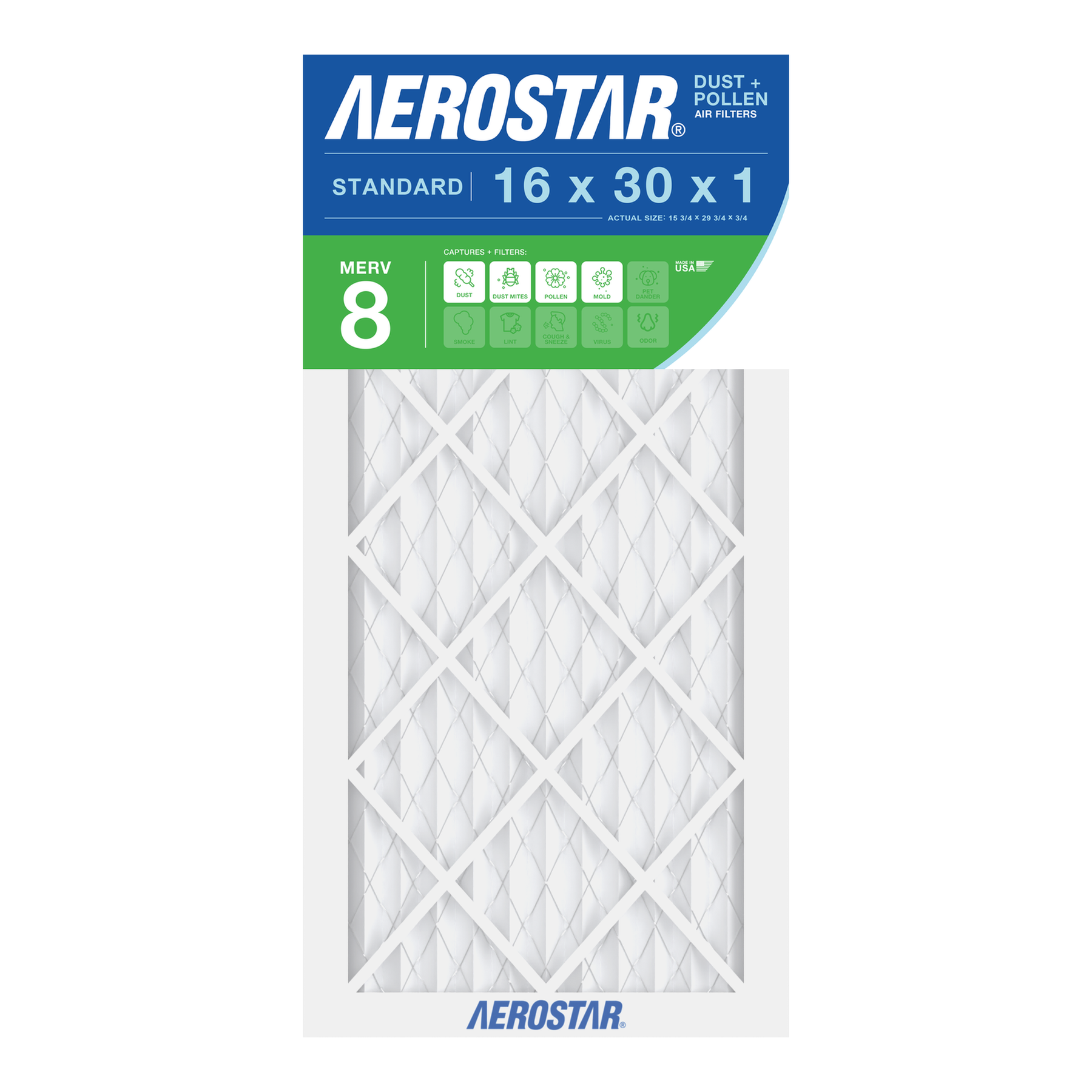

View Detailed InstructionsThe 16x30x1 Aerostar fits a nominal 16x30x1 return at an actual 15 1/2" x 29 1/2" x 3/4". Long, narrow returns like this show up in older furnace installations and certain horizontal air handler setups. MERV 8 covers the typical residential range for dust, lint, and pollen. MERV 11 handles pet dander, smoke residue, and most common household allergens. MERV 13 captures fine particulates including bacteria, virus-carrying droplets, and wildfire smoke - the grade to choose if anyone in the household has respiratory issues. Pleated synthetic media with an electrostatic charge does the actual filtration work. The pleats give you several times the surface area of a flat fiberglass filter at the same nominal size, which is why this filter outlasts cheap throwaways even at higher MERV grades. The electrostatic charge catches smaller particles than the weave would stop on its own. Manufactured by Con-Air Industries in Orlando, Florida. Cardboard frame, reinforced to hold shape under blower suction. Service life runs 60 to 90 days for MERV 8 and 11 in typical residential use. MERV 13 wants a 30-to-60-day change interval because higher filtration grades reach their pressure-drop limit faster as captured debris builds up across the filter face.
Pleated MERV 8 Media
Comparable to MPR 600 and FPR 5
Designed for Superior Filtration Efficiency
Made with electrostatically charged synthetic material that draws and captures allergens between 3 - 10 microns, including lint, dust mites, mold spores, pollen, pet dander, and dust.
Improve Indoor Air Quality
Protect your family and loved ones with clean indoor air quality at home. Aerostar filters are a simple and cost effective step towards a healthier home environment, free of airborne allergens and particles that can trigger various allergy and asthma symptoms.
Improve Efficiency and Reduce Cost
An Aerostar furnace air filter helps keep your HVAC unit working efficiently by removing dirt and reducing strain on the motor. When your unit runs properly, it consumes less energy, requires less maintenance and will have a longer life. These factors will have an impact on your utility bill and maintenance costs. It is recommended that you change the filter every 60 to 90 days during normal times of year but increase frequency to 30 days during peak summer and winter months when your unit is working the hardest.
About Aerostar Furnace Air Filters
Aerostar filters are manufactured in the USA by Filtration Group, a world-leading manufacturer and supplier of filtration solutions for residential, commercial and industrial applications. The Aerostar brand is known for constantly innovating and improving their technology to help make filtration more efficient, effective and environmentally friendly every day.
About MERV, MPR and FPR Rating
The three rating systems were created by different organizations. MERV is the domestic and international Industry Standard rating system established by the American Society of Heating, Refrigerating, and Air Conditioning Engineers. The other two rating systems were created by 3M and The Home Depot, but all are rating the same filter.
MERV Rating (Minimum Efficiency Reporting Value): As you have already learned, the MERV Rating is the primary rating system used in the industry, both domestically and internationally. Established by the American Society of Heating, Refrigerating, and Air Conditioning Engineers, MERV rates a filter’s ability to capture and hold particles and pollutants.
MPR (Micro-Particle Performance Rating): MPR Rating is a rating system developed by 3M. It rates the manufacturer’s Filtrete product line and their ability to capture airborne particles smaller than 1 micron.
FPR (Filter Performance Rating): FPR Rating is a rating system developed by The Home Depot for brands sold through their stores, including Honeywell. It utilizes a color code and number scale (4 to 10) that closely resembles the MERV rating.
MERV ratings let you know the efficiency and level of filtration that an air filter can handle under normal circumstances. The higher the MERV rating, the finer the particles are that are filtered our of the air in your home. Many air filter retailers use MERV or a similar rating to rate their air filters.
MERV Rating is the primary rating system used in the industry, both domestically and internationally. Established by the American Society of Heating, Refrigerating, and Air Conditioning Engineers, MERV rates a filter’s ability to capture and hold particles and pollutants.
MPR Rating is a rating system developed by 3M. It rates the manufacturer’s Filtrete product line and their ability to capture airborne particles smaller than 1 micron.
FPR Rating is a rating system developed by The Home Depot for brands sold through their stores, including Honeywell. It utilizes a color code and number scale (4 to 10) that closely resembles the MERV rating.
Overall rating: 4.6 / 5 from 5 reviews.
Review topics: ["size","quality","filters","service"].
"I really love these filters but shipping needs to be addressed. One of my boxes was shipped with something quite heavy placed on top. It crushed the box and the filters in the box. Perhaps a sturdier box would prevent my having to tape the filter together or throw it out. Nancy O’Connor"
"My last air filters I got each one was individually wrapped, and that way the dust stays off of them until I need to use them. These were not."
"I have ordered from this company for years. If any problem arises, they have the BEST customer service."
"na"
"The size of our filter isn’t found in stores so Filters Direct is fabulous. The quality is outstanding and we got them quickly. I definitely recommend shopping here."
